混凝土自上料攪拌車操作須知的五項重要內容

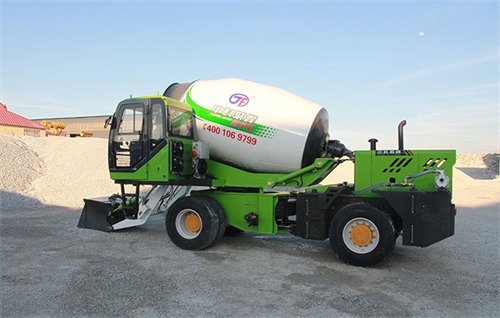

混凝土自上料攪拌車結構組成如按自成系統的機構來劃分，它基本包括攪拌筒及其附屬裝置、攪拌筒的驅動裝置，動力設備和運載底盤幾個主要系統。下面混凝土自上料攪拌車廠家來講講操作須知的五項重要內容吧。
The structural composition of the concrete self loading mixer truck is divided according to its own system of mechanisms, which basically includes several main systems: the mixing drum and its auxiliary devices, the driving device of the mixing drum, the power equipment, and the carrier chassis. Let's talk about the five important contents of the operating instructions from the manufacturer of the concrete self loading mixer truck.
1、車輛在進行卸料的時候，若是有出現了水分蒸發，塌落度有偏低而不能夠滿足于客戶的要求的時候，可以適量的往筒中添加水，再以10-14r/min的旋轉速度在30轉速之后卸料，使得混凝土能夠有著比較充分的攪拌。
1. When the vehicle is discharging, if there is moisture evaporation and the slump is too low to meet the customer's requirements, an appropriate amount of water can be added to the cylinder, and then the material can be discharged at a rotational speed of 10-14 r/min after 30 rpm, allowing the concrete to be more fully mixed.
2、混凝土在進行了運輸的過程里，其罐體是須禁止停動的，因為罐體停轉是會(huì )導致了混凝土出現凝結的情況，在停轉之后在重新啟動也會(huì )對減速機和液壓系統造成了一定的沖擊性，會(huì )損壞了馬達以及液壓泵。
2. During the transportation of concrete, the tank must not be stopped, because stopping the tank can lead to concrete condensation. Restarting after stopping can also cause certain impact on the reducer and hydraulic system, and can damage the motor and hydraulic pump.
3、車內水箱的水量是需要時常都加注滿的，以避免有不時之需。在水箱加滿水之前，應該是要把放氣閥打開，將箱體內的空氣都放掉。在沖洗的時候要打開啟發，沖洗結束或者是停止使用的時候，是需要將水關中的氣體放掉的。尤其是在冬季停放的時候，供水系統以及水箱中不能夠有剩的水。
3. The amount of water in the vehicle's water tank needs to be filled frequently to avoid unexpected needs. Before filling the water tank with water, it should be necessary to open the vent valve to vent all air in the tank. When flushing, it is necessary to turn on the inspiration. When the flushing is completed or stopped, it is necessary to discharge the gas in the water shutoff. Especially during winter parking, the water supply system and the water tank should not have any remaining water.
4、混凝土自上料攪拌車在公路上進行行駛的時候，其加長溜槽應該是要放置在卸料溜槽的支架上面并且是使用掛鉤掛牢固的，不能夠讓掛在主排料溜槽上運作。主排料溜槽需要旋轉到一個固定的位置，在拉下將其定位的手柄，將鎖緊手柄癱瘓變幅機構鎖起，以免防止了因為其不固定的搖擺造成了事故以及影響到了其他車輛的正常行駛。
4. When the concrete self loading mixer truck is traveling on a highway, its extended chute should be placed on the bracket of the discharge chute and firmly hung with a hook, and it should not be allowed to operate on the main discharge chute. The main discharge chute needs to be rotated to a fixed position. After pulling down the handle to position it, the locking handle is paralyzed and the luffing mechanism is locked, to prevent accidents caused by its unstable swing and affecting the normal operation of other vehicles.
5、滿載的混凝土正在是正轉的時候若是需要反轉，那么就需要操控手柄使其能夠正傳挺穩之后，在操控手柄讓其反轉。不可再進行正轉的時候操控手柄讓其反轉。
5. If it is necessary to reverse the full load of concrete when it is rotating in the forward direction, then it is necessary to use the control handle to enable it to rotate in the forward direction and stabilize it, and then use the control handle to reverse it. Do not reverse the joystick when performing forward rotation.
此外車輛處于空載的駕駛過程中，攪拌筒不能夠停轉，以免在行駛的過程中在顛簸的時候所造成了拖輪以及滾道的磕碰使其出現了異常的損壞。更多相關內容就來我們網站http://m.tanxudong.cn咨詢吧！
In addition, when the vehicle is driving with no load, the mixing drum cannot be stopped to avoid abnormal damage caused by the collision of the tugboat and the raceway during the bumpy driving process. For more relevant content, please visit our website http://m.tanxudong.cn Consult!
